REMOVER - UPPER MAIN SEAL

PART NO. 382944
For 5, 6 and 9-1/2 HP engines

PART NO. 386629
For 1974-77 9.9 and 15 HP engines

PART NO. 377067
For 15 thru 40 HP engines (except 1962 and
later 28. 33 and 40 Hp; 1974 and later 15
HP; 1976 and later 35 HP and 1977 25 Hp)

PART NO. 379239
For 28 and 40 HP engines - 1962 thru 1973
For 33 HP engines - 1965-1970

These tools include the following component
which is available separately.

Part No. 304584 Screw

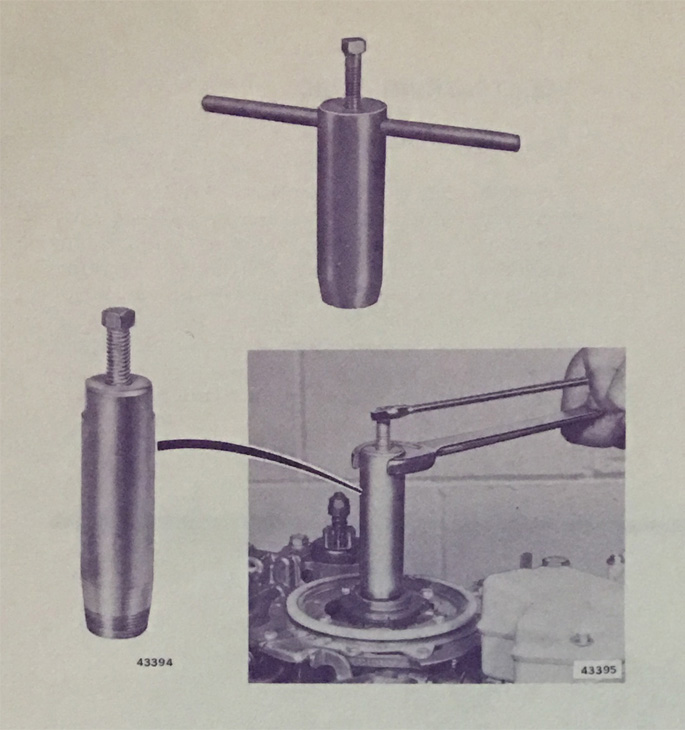

Used to pull the upper main bearing oil seal
from the assembled cylinder and crankcase.

If you have this tool there is no need to disas-
semble the powerhead to remove the seal.

On double lip seals - cut upper seal lip away
with knife before using tool.
