PINION BEARING REMOVER & INSTALLER SET
PART NO. 385546

For use on 1972-74 50; 1972-77 65, 70 HP; 1975-77 75 HP (long shaft) outboards and 1968-71 50, 55 and 60 HP outboards with replacement gearcases. In 1972 the 50 and 65 HP gearcases were redesigned requiring a new technique for removing and installing the pinion bearing. In addition, service replacement gearcases currently being built for older 50, 55 and 60 HP engines are also serviced using a method different from that explained in service manual. This tool includes all the components necessary to service any of these gearcases. Detailed, step-by-step instructions included with every tool. Use soft face hammer to avoid distorting screw head.

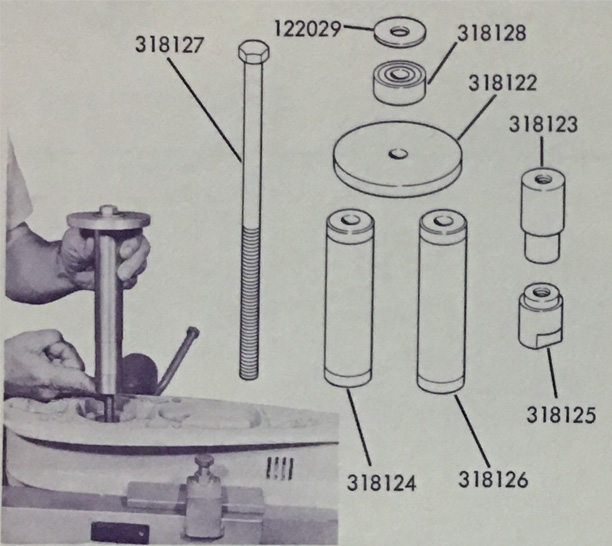

Includes the following components which are also available separately:

Part No. Description
122029 Washer
318122 Pressing Plate
318123 Bearing Installer
318124 Spacer (1972-76)
318125 Bearing Remover
318126 Spacer (1968-71)
318127 Bolt
318128 Thrust Bearing
