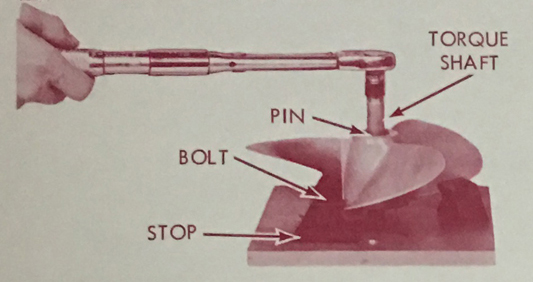

FIXTURE - PROPELLER TORQUE
PART NO. 378448

For all 9.5 thru 90 HP engines (except with
Thru-Hub exhausts. This fixture eliminates the
guesswork in determining when a propeller's
hub is slipping at a lower torque than specified.
A real aid in convincing your customer
that he needs a new propeller.

Refer to service bulletins for proper propeller
hub torque.

NOTE: An adapter can be made
to increase the leverage of a standard torque
wrench to the required values.

Includes following components which are available separately:

Part No.
308107 Stop
308108 Bolt
308109 Pin - 50 HP
308110 Pin - 28 thru 90 HP
308112 Torque Shaft - 50 HP
308113 Torque Shaft - 28 thru 40 HP
308114 Torque Shaft - 60 thru 90 HP
378455 Torque Shaft - 10 to 1959. All 15 thru 25 HP
379238 Torque Shaft - 10 HP 1959 thru 1969. all 9-1/2 HP
