Lower Gearcase — "DP" Dual Prop

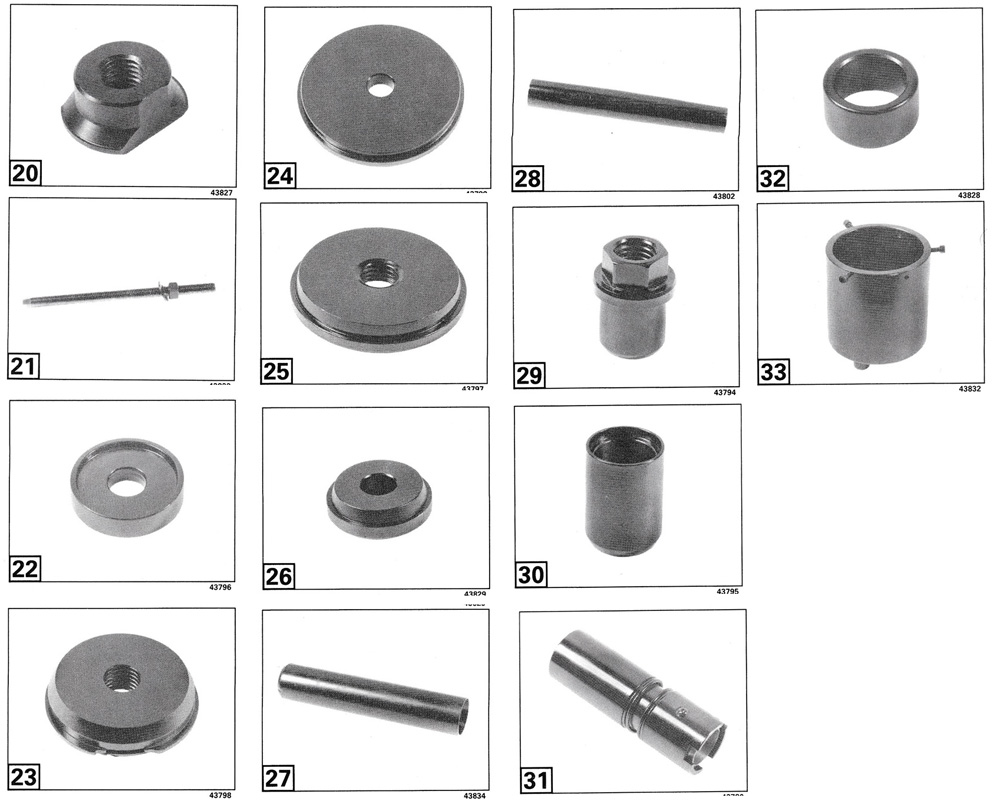

Service tools (figures 20 thru 33) are available as Service Tool Kit,
Part No. 3856041

[20] 3855859 Remover Tip
Removes driveshaft lower bearing race from housing.

[21] 3855860 Rod, Nut, & Washer
Used with P/N 3855859 to remove driveshaft lower bearing from housing.

[22] 3855861 Bearing Installer
installs bearing onto forward gear.

[23] 3855862 Remover
Removes forward bearing race from housing.

[24] 3855863 Guide Plate
Use with P/N 3855862 when removing forward bearing race from housing.

[25] 3855864 Race Installer
Installs bearing into the propshaft bearing carrier.

[26] 3855865 Race Installer
Installs bearing into tube gear.

[27] 3855866 Bearing & Sleeve installer
installs bearing and sleeve into tube gear.

[28] 3855867 Spacer
Used with 3855868 Remover/Installer Tip when driveshaft lower pinion bearing.

[29] 3855868 Remover/Installer Tip
Removes and installs driveshaft lower pinion bearing.

[30] 3855869 Sleeve Installer
Installs pinion bearing sleeve on vertical driveshaft.

[31] 3855870 Shim Gage
Shims driveshaft.

[32] 3855871 Shim Gage
Shims tube gear.

[33] 3855872 Shim Gage
Shims tube gear.
