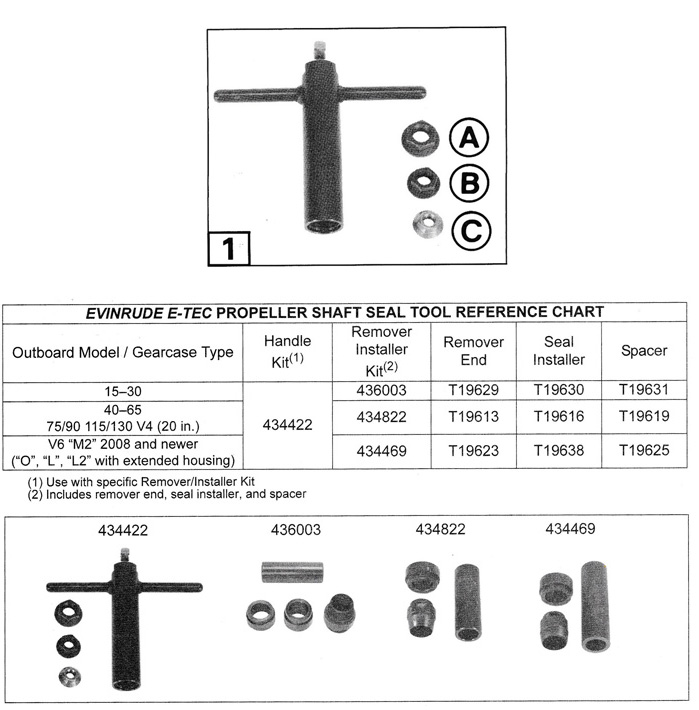

Handle and Nut Kit
Part No. 434422

Use with Remover/Installer kits listed below.

Replaces propeller shaft seals without removing the propeller
shaft bearing housing from the gearcase.

Order replacement nuts from:

Meyer Engineering
Voice (708) 746-1500
Fax (708) 746-1513

(A) P/N T-19621 - used with P/N 434469 & 434821
(B) P/N T-19622 - used with P/N 435104 & 434822
(C) P/N T-19623 - used with P/N 436003

Remover/Installers
436003 — 20 thru 30 Thru-Hub, and 25/35 3-cylinder

434822 — 40-65 HP; 75/90; 115/130 V4 (20 in.)
Stern Drive: 4 1/8 in. gearcase

434469 — V6 "M2" 2008+; "O", " L", "L2" with extended housing.
Stern Drive: 1992 and 1993 OMC Cobra gearcase

434821 — 1991 and prior OMC Cobra gearcase

435104 — 40, 48, 50; 1988 and older 40 Thru-Hub thru 2 cylinder;
15 in. 75 3-cylinder
