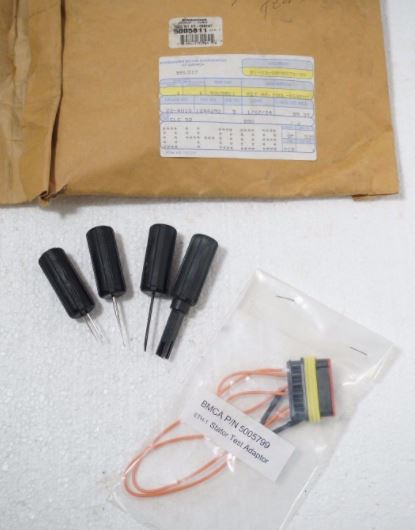

2004 Two Stroke (2S) Essential Tool Kit
Part No. 5005811

351204 Torx driver: Used on 2004 and newer 9.9/15HP and 90-175HP Johnson (2s) carburetors with tamper resistant screws.

351413 Terminal release tool: Used on Amp Power Timer series connectors to remove terminal from connector housing.

777077 Terminal primary lock tool: Used on Amp Superseal 1.5 connectors to remove terminal from connector housing.

777078 Terminal secondary lock tool: Used on Amp Superseal 1.5 connectors to remove anti-backout device from connector housing.

777079 Terminal secondary lock installer: Used on Amp Superseal 1.5 connectors to install anti-backout device into connector housing.

5005799 Stator test adaptor: Used on 40-90HP Evinrude E-TEC models to test stator output and resistance.

5005844 Injector fitting kit: Provides fittings needed to pressure test Evinrude E-TEC fuel injectors.
