Transom Drilling Fixture

TRANSOM DRILLING FIXTURE
PART NO. 378253

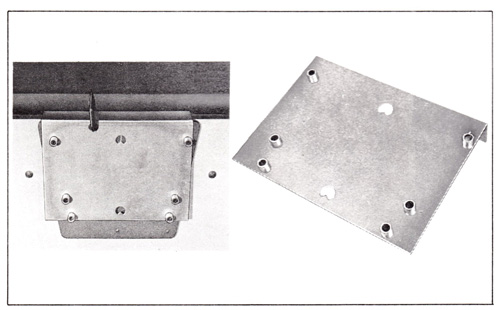

Used to correctly place holes for mounting brackets for 75 HP engines.

Factory instructions: Johnson Service Bulletin SB-763 (February 11, 1960). Describes fixture positioning, transom drilling, and mounting precautions.

Available on eBay

eBay is typically the best, if not only, place for new, NOS, and used tools. As an eBay Partner, EverythingOutboards may earn a commission if you make a purchase through these links.

Checking current eBay listings…

Listings are from independent sellers. Prices and availability may change.

A little factory history: SB-736 promised this drill fixture could also be used for the clamp kit. SB-765 later corrected that claim. Apparently, even the factory had to check its homework: use the separate drilling chart for clamp kit #378091.
